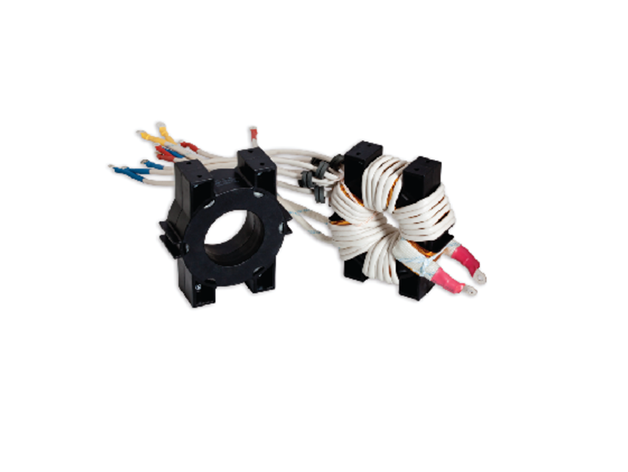

Fe-based Nanocrystalline Power Transformer

Introduction:

With the development of high frequency and miniaturization of power supplies, Fe-based nanocrystalline cores have been used in the high-frequency (100kHz) power transformer, and it has high saturation magnetic induction, low loss, and near-zero magnetostriction, which can reduce the size and weight of components and lower energy consumption.

In the past, a large number of ferrite core transformers are used in the high-frequency power supply market, but their major problems are large volume, high temperature rise, low temperature conversion efficiency, poor resistance to unbalanced current characteristics, high temperature input impedance characteristics fluctuations and high temperature leakage inductance, which affect the electromagnetic compatibility of the circuit and the normal resonant working state.

Features:

1. High saturation magnetic induction intensity- Reduce the size of the transformer effectively
2. Low coercivity- Improve the efficiency of transformer; reduce the exciting power and copper loss
3. Permeability- Customized design according to your needs.
4. Low loss- Reduce transformer temperature rise
5. Higher Curie temperature – Excellent temperature stability
6. High-power design – Meet the needs of large-size iron core customization

Applications:

• • Inverter welding machine power supply
  • Uninterrupted Power Supply (UPS)
  • High frequency induction heating power supply
  • Electrolytic and electroplate power supply
  • X-ray, Laser, Communication power supply
  • Switching power supply in trains and ships

Specifications:

We can produce Nanocrystalline Core Power Transformers according to customer’s requirements.
